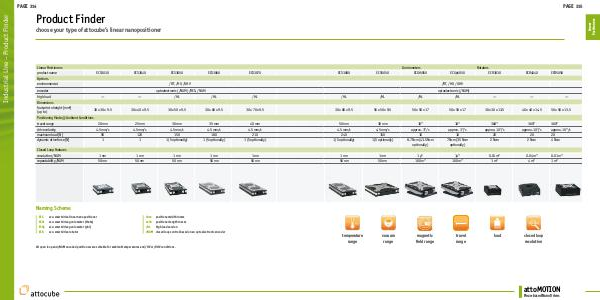

Product Finder
choose your type of attocube’s linear nanopositioner
Linear Positioners
product name
ECS3030
ECS3040
ECS3050
ECS3060
ECS3070
Options
environmental
/RT, /HV, /UHV
encoder
optoelectronic (/NUM) /RES, /NUM
high load
---
---
/HL
/HL
/HL
30 x 30 x 9.5
30 x 40 x 9.5
30 x 50 x 9.5
30 x 60 x 9.5
30 x 70 x 9.5
Dimensions
footprint x height [mm³]
(up to)
Positioning Mode @ Ambient Conditions
travel range
20 mm
25 mm
30 mm
35 mm
40 mm
drive velocity
4.5 mm/s
4.5 mm/ s
4.5 mm/s
4.5 mm/s
4.5 mm/s
maximum load [N]
90
120
150
180
210
dynamic drive force [N]
1
1
1 (5 optionally)
1 (5 optionally)
1 (5 optionally)
Closed Loop Features
resolution /NUM
1 nm
1 nm
1 nm
1 nm
1 nm
repeatability /NUM
50 nm
50 nm
50 nm
50 nm
50 nm
Naming Scheme
ECS
eco-smart drive linear nanopositioner
30xx
positioner width in mm
ECGt
eco-smart drive goniometer (theta)
xx30
positioner length in mm
ECGp
eco-smart drive goniometer (phi)
/HL
high load version
ECR
eco-smart drive rotator
/NUM closed loop control based on an optoelectronic encoder
All open loop and /NUM encoded positioners are suitable for ambient temperatures and /HV or /UHV conditions.
