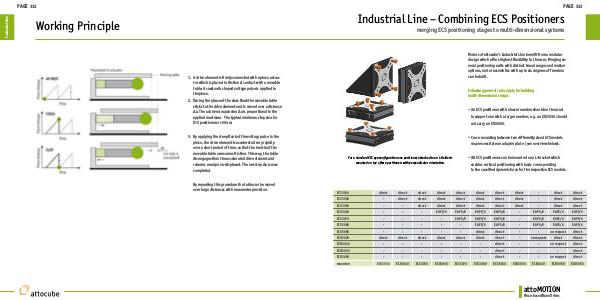

PAGE 313 Industrial Line – Combining ECS Positioners merging ECS positioning stages to multi-dimensional systems Motors of attocube’s Industrial Line benefit from a modular design which offers highest flexibility to the user. Merging several positioning units with distinct travel ranges and motion options, motor assemblies with up to six degrees of freedom can be built. Following general rules apply for building multi-dimensional setups: • An ECS positioner with a lower number should not be used to support one with a larger number, e.g. an ECS3030 should not carry an ECS5050. • Cross-mounting between two differently sized ECS models may necessitate an adapter plate (see overview below). • All ECS positioners can be mounted on a L-bracket which For a standard ECS xyz-configuration one positioner attached to an L-Holder is mounted on top of two positioners with perpendicular orientation. enables vertical positioning with loads corresponding to the specified dynamic force for the respective ECS models. ECS3030 direct direct direct direct direct direct direct direct - direct direct ECS3040 - direct direct direct direct direct direct direct - direct direct ECS3050 - - direct direct direct direct direct direct - direct direct ECS3060 - - - EAP5/6 EAP5/6 EAP5/6 EAP5/6 - EAP5/6 EAP5/6 EAP5/6 ECS3070 - - - - EAP5/6 EAP5/6 EAP5/6 - EAP5/6 EAP5/6 EAP5/6 ECS3080 - - - - - EAP5/6 EAP5/6 - EAP5/6 EAP5/6 EAP5/6 ECS5050 - - - - - direct direct - - on request direct ECR3030 direct direct direct direct direct direct direct - on request direct direct ECR4040 - - - - - - direct - - on request direct ECR5050 - - - - - - direct - - - direct ECG5050 - - - - - - direct - - on request direct mount on ECS3030 ECS3040 ECS3050 ECS3060 ECS3070 ECS3080 ECS5050 ECR3030 ECR4040 ECR5050 ECG5050 attoMOTION Piezo-based Nano Drives
