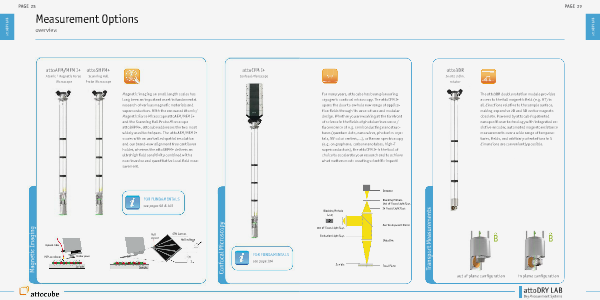

Measurement Options
overview
attoSHPM+
Scanning Hall
Microscope
Probe Microscope
attoCFM I+
Confocal Microscope
S
attoAFM/MFM I+
Atomic / Magnetic Force
N
Magnetic imaging on small length scales has
long been an important asset in fundamental
research of various magnetic materials and
superconductors. With the renowned Atomic/
Magnetic Force Microscope attoAFM/MFM I+
and the Scanning Hall Probe Microscope
attoSHPM+, attocube addresses the two most
widely used techniques. The attoAFM/MFM I+
scores with an unrivalled spatial resolution
and our brand-new alignment free cantilever
holder, whereas the attoSHPM+ delivers an
ultrahigh field sensitivity combined with a
non-invasive and quantitative local field measurement.
FOR FUNDAMENTALS
Hall
sensor
STM Current
Hall voltage
Optical fiber
MFM cantilever
Dither piezo
I Hall
Sample
Sample
Confocal Microscopy
see pages 98 & 103
Magnetic Imaging
attoDRY LAB
PAGE 28
FOR FUNDAMENTALS
see page 104
