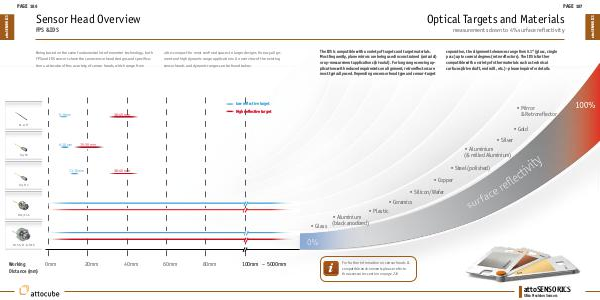

Optical Targets and Materials
measurements down to 4% surface reflectivity
The IDS is compatible with a variety of targets and target materials.
Most frequently, plane mirrors are being used in constrained (uniaxial)
or xy-measurement applications (bi-axial). For long range sensing applications with reduced requiremets on alignment, retroreflectors are
most typically used. Depending on sensor head type and sensor-target
separation, the alignment tolerances range from 0.1° (glass, single
pass) up to several degrees (retroreflectors). The IDS is further
compatible with a variety of other materials such as technical
surfaces (drive shaft, end mill, etc.) - please inquire for details.
• Mirror
& Retroreflector
• Gold
• Silver
• Aluminium
(& milled Aluminium)
• Steel (polished)
• Copper
• Silicon/Wafer
• Ceramics
• Glass
• Plastic
• Aluminium
(black anodized)
For further information on sensor heads &
compatible environments please refer to
the accessories section on page 216
