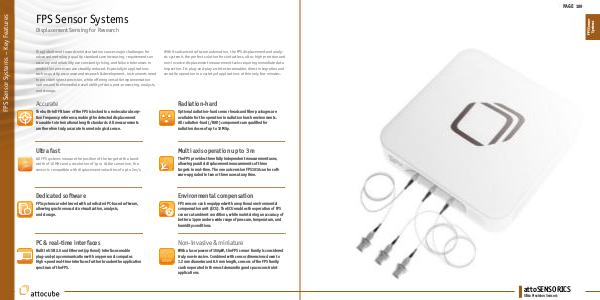

FPS Sensor Systems – Key Features
FPS Sensor Systems
Displacement Sensing for Research
The global trend towards miniaturization causes major challenges for
advanced metrology: quality standards are increasing, requirements on
accuracy and reliability are constantly rising, and failure tolerances in
production processes are steadily reduced. Especially in applications
such as quality assurance and research & development, instruments need
to provide highest precision, while offering versatile implementation
options and the immediate availability of data post-processing, analysis,
and storage.
Accurate
Accurate
Radiation-hard
The built-in DFB laser of the FPS is locked to a molecular absorption frequency reference, making the detected displacement
traceable to international length standards. All measurements
are therefore truly accurate in a metrological sense.
Optional radiation-hard sensor heads and fiber packages are
available for the operation in radiation harsh environments.
All radiation-hard (/RAD) components are qualified for
radiation doses of up to 10 MGy.
Ultra fast
Multi axis operation up to 3 m
All FPS systems measure the position of the target with a bandwidth of 10 MHz and a resolution of 1 pm. At the same time, the
sensor is compatible with displacement velocities of up to 2 m/s.
Software
With its advanced software automation, the FPS displacement and analysis system is the perfect solution for contactless, ultra-high precision and
non-invasive displacement measurement tasks requiring immediate data
inspection. Its plug-and-play architecture enables direct int Vw&F
