PAGE 186
attoSENSORICS

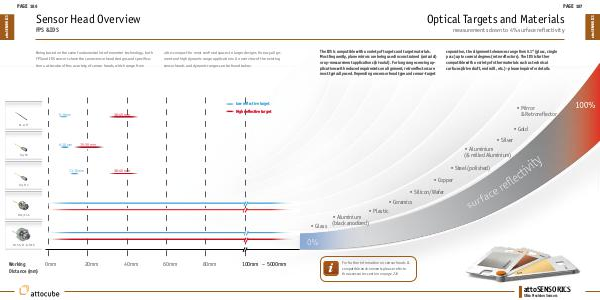

Sensor Head Overview
FPS & IDS
Being based on the same fundamental interferometer technology, both
FPS and IDS sensors share the same sensor head designs and specifications. attocube offers a variety of sensor heads, which range from
ultra-compact for most confined spaces to larger designs for easy alignment and high dynamic range applications. An overview of the existing
sensor heads and dynamic ranges can be found below.
Low reflective target
High reflective target
30-45 mm
5-9 mm
D1.2/F7
6-10 mm
15-30 mm
D4/F8
11-15 mm
30-45 mm
D4/F13
M12/C1.6
M15.5/C1.6/FLEX
Working
Distance (mm)
0 mm
20 mm
40 mm
60 mm
80 mm
100 mm – 5000 mm
