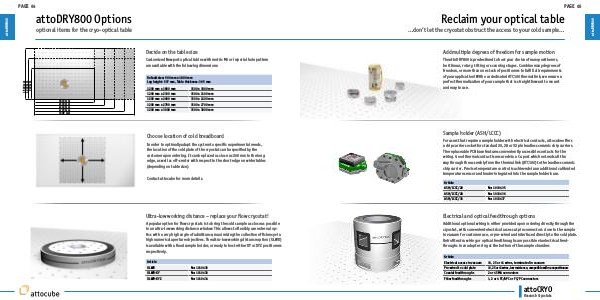

Reclaim your optical
table
rerer
…don’t let the cryostat obstruct the access to your cold sample…
Add multiple degrees of freedom for sample motion
The attoDRY800 is predestined to host your choice of nanopositioners,
be it linear, rotary, tilting or scanning stages. Combine many degrees of
freedom, or more than one stack of positioners to fulfill all requirements
of your application! With our dedicated ATC100 thermal link, we ensure a
perfect thermalization of your sample that is straightforward to mount
and easy to use.
Sample holder (ASH/LCCC)
For users that require a sample holder with electrical contacts, attocube offers
a chip carrier socket for standard 20, 28 or 32 pin leadless ceramic chip carriers.
The replaceable PCB base features conveniently accessible contacts for the
wiring. Good thermal contact is ensured via a Cu post which extends all the
way through the assembly from the thermal link (ATC100) to the leadless ceramic
chip carrier. Precise temperature control is achieved via an additional calibrated
temperature sensor and heater integrated into the sample holder base.
Article
ASH/LCCC/20
No: 1010435
ASH/LCCC/28
No: 1010436
ASH/LCCC/32
No: 1010437
Electrical and optical feedthrough options
Additional optional wiring is either provided upon ordering directly through the
cryostat, with convenient electrical access at pin connectors close to the sample
in vacuum for customer use, or pre-wired and interfaced directly to the cold plate.
Retrofit extra wiring or optical feedthroughs are possible via electrical feedthroughs in an adapter ring at the bottom of the sample chamber.
Article
Electrical access in vacuum
10, 25 or 41 wires, terminated in vacuum
Pre-wired to cold plate
10, 25 or 41 wires, low resistance, compatible with nanopositioners
Coaxial feedthroughs
2 or 4 SMA connectors
Fiber feedthroughs
1, 2 or 4 FC/APC or FC/PC connectors
attoCRYO
Research Cryostats
attoDRY800
PAGE 65
