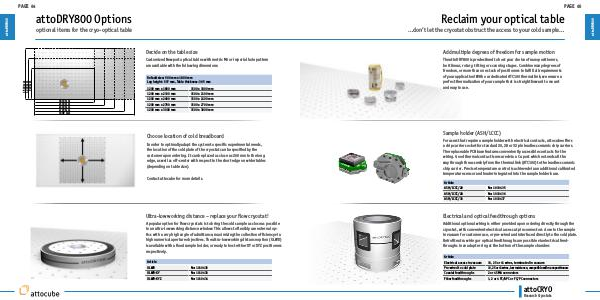

PAGE 64
attoDRY800
attoDRY800 Options
optional items for the cryo-optical table
Decide on the table size
Customized Newport optical tables with metric M6 or imperial hole pattern
are available with the following dimensions:
1500 mm
1200 mm
900 mm
Default size: 900 mm x 1800 mm
Leg height: 597 mm, Table thickness: 305 mm
1800 mm
2100 mm
2400 mm
2700 mm
3000 mm
1200 mm x 1800 mm
1500 x 1800 mm
1200 mm x 2100 mm
1500 x 2100 mm
1200 mm x 2400 mm
1500 x 2400 mm
1200 mm x 2700 mm
1500 x 2700 mm
1200 mm x 3000 mm
1500 x 3000 mm
Choose location of cold breadboard
In order to optimally adapt the system to specific experimental needs,
the location of the cold plate of the cryostat can be specified by the
customer upon ordering. It can be placed as close as 200 mm to the long
edge, as well as off-center with respect to the short edge on wider tables
(depending on table size).
Contact attocube for more details.
Ultra-low working distance – replace your flow cryostat!
A popular option for flow cryostats is to bring the cold sample as close as possible
to an ultra-low working distance window. This allows to flexibly use external optics with a very high angle of admittance, maximizing the collection efficiency via
high numerical aperture objectives. The ultra-low working distance option (ULWD)
is available with a fixed sample holder, or ready to host either XY or XYZ positioners
respectively.
Article
ULWD
No: 1010432
ULWD-XY
No: 1010433
ULWD-XYZ
No: 1010434
