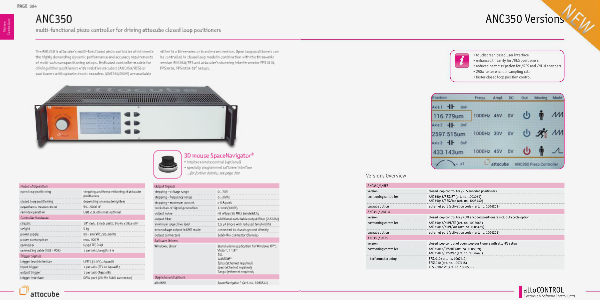

ANC350
multi-functional piezo controller for driving attocube closed loop positioners
The ANC350 is attocube’s multi-functional piezo controller which meets
the highly demanding dynamic performance and accuracy requirements
of multi-axis nanopositioning setups. Dedicated controller models for
driving either positioners with resistive encoders (ANC350/RES) or
positioners with optoelectronic encoders (ANC350/NUM) are available
either in a three-axes or in a six-axes version. Open loop positioners can
be controlled in closed loop mode in combination with the three-axis
version ANC350/FPS and attocube’s stunning interferometer FPS1010,
FPS3010, FPS3010-19” setups.
3D mouse SpaceNavigator®
• intuitve remote control (optional)
• specially programmed software interface
...for further details, see page 369
Modes of Operation
open loop positioning
Output Signals
stepping and fine positioning of attocube
positioners
stepping - voltage range
0 .. 70 V
stepping - frequency range
0 .. 2 kHz
closed loop positioning
depending on encoder system
stepping - maximum current
> 8 A peak
capacitance measurement
50…5000 nF
resolution of signal generation
1.1 mV (16 bit)
remote operation
USB 2.0, ethernet optional
output noise
<8 mVpp (20 MHz bandwidth)
output filter
additional switchable output filter (2.5 kHz)
Controller Hardware
chassis
19” rack, 2 rack units, 9 x 45 x 28.5 cm³
maximum capacitive load
1.5 µF (more with reduced bandwidth)
weight
5 kg
zero voltage output in GND mode
connected to chassis ground directly
power supply
90 - 240 VAC, 50..60 Hz
output connectors
SubD-Mix connector (female)
power consumption
max. 100 W
Software Drivers
connector
fused IEC inlet
Windows, Linux
connecting cable (ELE - POS)
1 per axis, length: 2 m
Trigger Signals
trigger level definition
LVTTL (3.3 V), AquadB
input trigger
1 per axis (TTL or AquadB)
output trigger
1 per axis (AquadB)
trigger interface
GPIO port (26-Pin SubD connector)
Stand-alone application for Windows XPTM,
VistaTM, 7TM,8TM
DLL
LabVIEWTM
Epics (ethernet required)
spec (ethernet required)
Tango (ethernet required)
Upgrades and Options
attoNAV
SpaceNavigator ® (art. no. 1010522)
