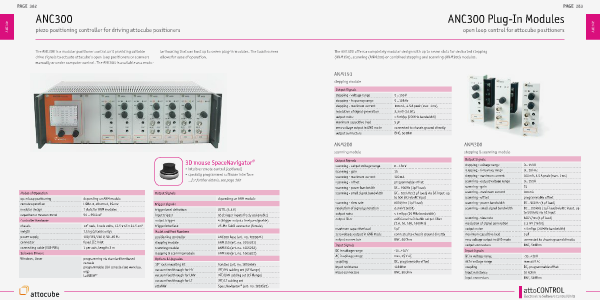

ANC300
ANC300
piezo positioning controller for driving attocube positioners
The ANC300 is a modular positioner control unit providing suitable
drive signals to actuate attocube's open loop positioners or scanners
manually or under computer control. The ANC300 is available as a modu-
lar housing that can host up to seven plug-in modules. The touch screen
allows for ease of operation.
3D mouse SpaceNavigator®
• intuitve remote control (optional)
• specially programmed software interface
...for further details, see page 369
Modes of Operation
Output Signals
open loop positioning
depending on ANM module
remote operation
USB2.0, ethernet, RS232
Trigger Signals
modular design
7 slots for ANM modules
trigger level definition
LVTTL (3.3 V)
capacitance measurement
50 .. 5500 nF
input trigger
16 (trigger inputs freely assignable)
output trigger
4 (trigger outputs freely assignable)
25-Pin SubD connector (female)
Controller Hardware
depending on ANM module
chassis
19” rack, 3 rack units, 13.5 x 45 x 34.5 cm³
trigger interface
weigth
7.5 kg (chassis only)
Model and Part Numbers
power supply
100/115/230 V, 50..60 Hz
positioning controller
ANC300 Base (art. no. 1003821)
connector
fused IEC inlet
stepping module
ANM150 (art. no. 1005251)
connecting cable (ELE-POS)
1 per axis, length: 2 m
scanning module
ANM200 (art. no. 1005252)
stepping & scanning module
ANM300 (art. no. 1003822)
Software Drivers
Windows, Linux
programming via standard textbased
console
programmable LUA console (see www.lua.
org)
LabVIEW TM
Options & Upgrades
19” rack mounting kit
handles (art. no. 1001606)
vacuum feedthrough for HV
VFT/HV cabling set (KF flange)
vacuum feedthrough for UHV
VFT/UHV cabling set (CF flange)
vacuum feedthrough for LT
