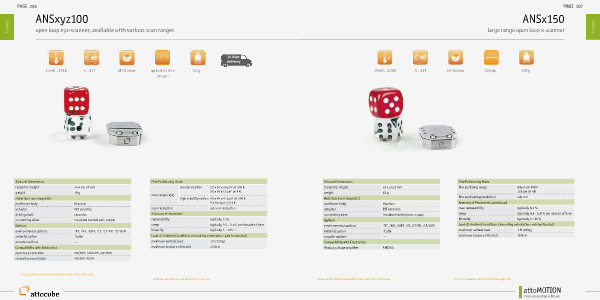

ANSx150
large range open loop x-scanner
10 mK .. 373 K
0 .. 31 T
Size and Dimensions
5E-11 mbar
125 µm
100 g
Fine Positioning Mode
footprint; height
24 x 24; 9 mm
weight
18 g
Materials (non-magnetic)
fine positiong range
80 µm @ 300 K
125 µm @ 4 K
fine positioning resolution
sub-nm
positioner body
titanium
Accuracy of Movement (open loop)
actuator
PZT ceramics
scan repeatability
typically 0.1 %
connecting wires
insulated twisted pair, copper
creep
typically 0.5 - 0.8 % per decade of time
linearity
typically 5 - 10 %
Options
environmental options
/RT, /HV, /UHV, /LT, /LT/HV, /LT/UHV
Load @ Ambient Conditions (mounting orientation: axis horizontal)
material option
/CuBe
maximum vertical load
1 N (100g)
encoder options
---
maximum torque on the axis
10 Ncm
Compatibility with Electronics
Analog voltage amplifier
ANC250
* measured by maximum deviation from linear fit on full range
technical drawings can be found from page 308
attoMOTION
Piezo-based Nano Drives
Scanners
PAGE 307
