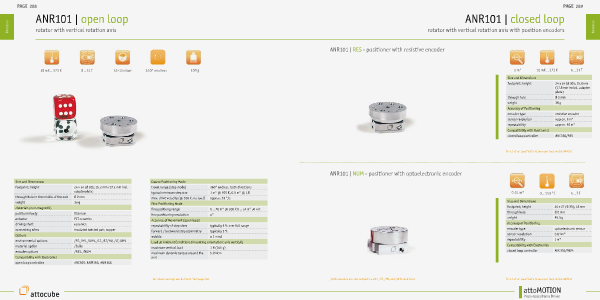

PAGE 289
Rotators
ANR101 | closed loop
rotator with vertical rotation axis with position encoders
ANR101 | RES - positioner with resistive encoder
6 m°
10 mK .. 373 K
0 .. 31 T
Size and Dimensions
footprint; height
24 x 24 (Ø 30); 15.8 mm
(17.8 mm includ. adapter
plate)
through hole
Ø 2 mm
weight
36 g
Accuracy of Positioning
encoder type
resistive encoder
sensor resolution
approx. 6 m°
repeatability
approx. 50 m°
Compatibility with Electronics
closed loop controller
ANC350/RES
for all other specifications see open loop model ANR101
ANR101 | NUM - positioner with optoelectronic encoder
°C
0.01 m°
0 .. 100 °C
0 .. 7 T
Size and Dimensions
footprint; height
24 x 27 (Ø 30); 18 mm
through hole
Ø 2 mm
weight
45.5 g
Accuracy of Positioning
encoder type
optoelectronic sensor
sensor resolution
0.01 m°
repeatability
1 m°
Compatibility with Electronics
closed loop controller
/NUM encoders are only compatible with /RT, /HV, and /UHV conditions
ANC350/NUM
for all other specifications see open loop model ANR101
attoMOTION
Piezo-based Nano Drives
