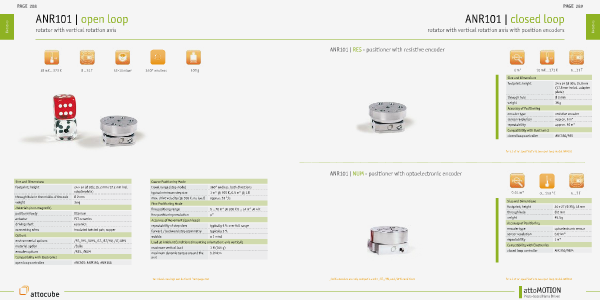

PAGE 288
Rotators
ANR101 | open loop
rotator with vertical rotation axis
10 mK .. 373 K
0 .. 31 T
5E-11 mbar
Size and Dimensions
footprint; height
360° endless
100 g
Coarse Positioning Mode
24 x 24 (Ø 30); 15.2 mm (17.2 mm incl.
adapterplate)
travel range (step mode)
360° endless, both directions
typical minimum step size
1 m° @ 300 K, 0.5 m° @ 4 K
through hole in the middle of the axis
Ø 2 mm
max. drive velocity (@ 300 K, no load)
approx. 30 °/s
weight
36 g
Fine Positioning Mode
Materials (non-magnetic)
fine positiong range
0 .. 70 m° @ 300 K 0 .. 14 m° @ 4 K
positioner body
titanium
fine positioning resolution
μ°
actuator
PZT ceramics
driving shaft
ceramics
Accuracy of Movement (open loop)
connecting wires
insulated twisted pair, copper
Options
environmental options
/RT, /HV, /UHV, /LT, /LT/HV, /LT/UHV
material option
/CuBe
encoder options
/RES, /NUM
Compatibility with Electronics
open loop controller
repeatability of step sizes
typically 5 % over full range
forward / backward step asymmetry
typically 5 %
wobble
± 1 mrad
Load @ Ambient Conditions (mounting orientation: axis vertical)
maximum vertical load
1 N (100 g)
maximum dynamic torque around the
axis
0.8 Ncm
ANC300: ANM150, ANM300
technical drawings can be found from page 296
