Rotators Premium Line – Product Finder
PAGE 280

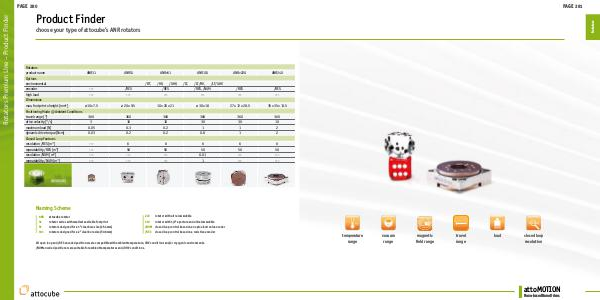

Product Finder
choose your type of attocube’s ANR rotators
Rotators
product name
ANR31
ANR51
ANRv51
encoder
---
/RES
/RES
high load
---
---
ø 10 x 7.5
ANR101
ANRv220
ANR240
/RES, /NUM
/RES
/RES
---
---
---
---
ø 20 x 9.5
10 x 20 x 21
ø 30 x 18
27 x 12 x 28.5
35 x 35 x 13.5
Options
environmental
/RT,
/HV,
/UHV,
/LT,
/LT/HV,
/LT/UHV
Dimensions
max. footprint x height [mm³]
Positioning Mode @ Ambient Conditions
360
360
360
360
360
360
drive velocity [°/s]
travel range [°]
3
10
10
30
30
10
maximum load [N]
0.05
0.3
0.2
1
1
2
dynamic drive torque [Ncm]
0.03
0.2
0.2
0.8
1
2
Closed Loop Features
resolution /RES [m°]
---
6
6
6
6
6
repeatability /RES [m°]
---
50
50
50
50
50
resolution /NUM [m°]
---
---
---
0.01
---
---
repeatability /NUM [m°]
---
---
---
1
---
---
Naming Scheme
ANR
attocube rotator
220
rotator with ultra low wobble
31
rotator series with smallest available footprint
240
rotator with 1/2“ aperture and ultra low wobble
51
rotators designed for a 1” clear bore size (25.4 mm)
/NUM closed loop control based on an optoelectronic encoder
101
rotators designed for a 2” clear bore size (50.8 mm)
/RES
closed loop control based on a resistive encoder
All open loop and /RES encoded positioners are compatible with ambient temperature, UHV conditions and/or cryogenic environments.
/NUM encoded positioners are suitable for ambient temperatures and /UHV conditions.
