PAGE 247
Linear
Positioners

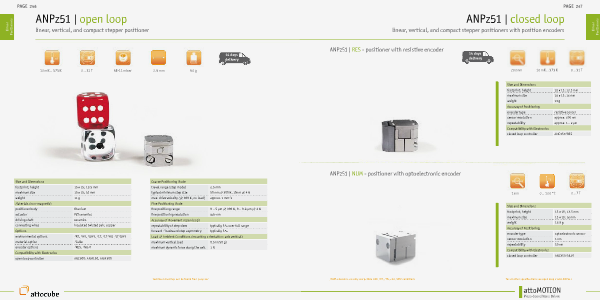

ANPz51 | closed loop
linear, vertical, and compact stepper positioners with position encoders
14 days
delivery
ANPz51 | RES - positioner with resistive encoder
14 days
delivery
200 nm
10 mK .. 373 K
0 .. 31 T
Size and Dimensions
footprint; height
18 x 15; 13.5 mm
maximum size
18 x 15; 16 mm
weight
13 g
Accuracy of Positioning
encoder type
resistive sensor
sensor resolution
approx. 200 nm
repeatability
approx. 1 .. 2 µm
Compatibility with Electronics
closed loop controller
ANC350/RES
ANPz51 | NUM - positioner with optoelectronic encoder
°C
1 nm
0 .. 100 °C
0 .. 7 T
Size and Dimensions
footprint; height
15 x 19; 13.5 mm
maximum size
15 x 19; 16 mm
weight
13.9 g
Accuracy of Positioning
encoder type
optoelectronic sensor
sensor resolution
1 nm
repeatability
50 nm
Compatibility with Electronics
closed loop controller
/NUM encoders are only compatible with /RT, /HV, and /UHV conditions
ANC350/NUM
for all other specifications see open loop model ANPz51
attoMOTION
Piezo-based Nano Drives
