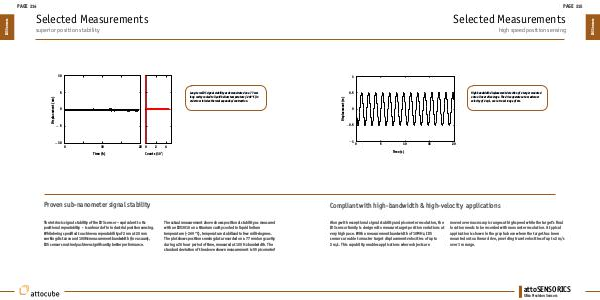

Selected Measurements
high speed position sensing
1
Displacement (m)
0.5
High bandwidth displacement detection of a target mounted
onto a linear drive stage. The drive operates at a maximum
velocity of 2 m/s, over a travel range of 1m.
0
−0.5
−1
0
5
10
15
20
Time (s)
Compliant with high-bandwidth & high-velocity applications
Along with exceptional signal stability and picometer resolution, the
IDS sensor family is designed to measure target position variations at
very high pace. With a measurement bandwidth of 10 MHz, IDS
sensors are able to master target displacement velocities of up to
2 m/s. This capability enables applications where objects are
moved over macroscopic ranges at high speed while the target’s final
location needs to be recorded with nanometer resolution. A typical
application is shown in the graph above where the target has been
mounted onto a linear drive, providing travel velocities of up to 2 m/s
over 1 m range.
attoSENSORICS
Ultra Precision Sensors
IDS Sensors
PAGE 215
