IDS Sensors
PAGE 208

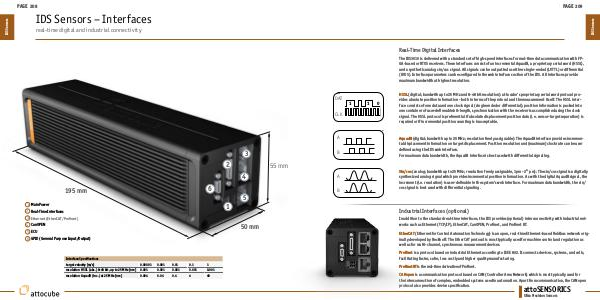

IDS Sensors – Interfaces
real-time digital and industrial connectivity
3
2
55 mm
4
6
195 mm
5
1
1 Main Power
2 Real-Time Interfaces
3 Ethernet (EtherCAT/Profinet)
4 CanOPEN
50 mm
5 ECU
6 GPIO (General Purpose Input/Output)
Interface Specifications
target velocity [m/s]
0.00001
0.001
0.01
0.1
1
resolution HSSL (abs.) 8-48 bit, up to 25 MHz [nm]
0.001
0.001
0.001
0.001
0.001
resolution AquadB (inc.) at 25 MHz [nm]
0.004
0.04
0.4
4
40
