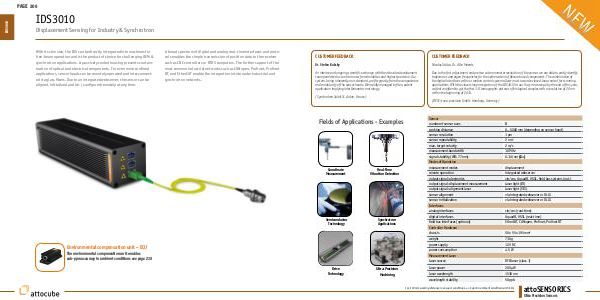

IDS3010
PAGE 206
IDS3010
Displacement Sensing for Industry & Synchrotron
With its slim size, the IDS can be directly integrated into machines for
free-beam operation and is the product of choice for challenging OEM &
synchrotron applications. A passively cooled housing prevents contamination of optical and electrical components. For even more confined
applications, sensor heads can be remotely operated and interconnected via glass fibers. Due to an integrated webserver, the sensor can be
aligned, initialized and (re-) configured remotely at any time.
Environmental compensation unit – ECU
The environmental compensation unit enables
sub-ppm accuracy in ambient conditions see page 218
A broad spectrum of digital and analog real-time interfaces and protocols enables the simple transmission of position data to the receiver
such as CNC controllers or RTOS computers. The further support of the
most common industrial networks such as CANopen, Profinet, Profinet
RT, and EtherCAT enable the integration into broader industrial and
synchrotron networks.
