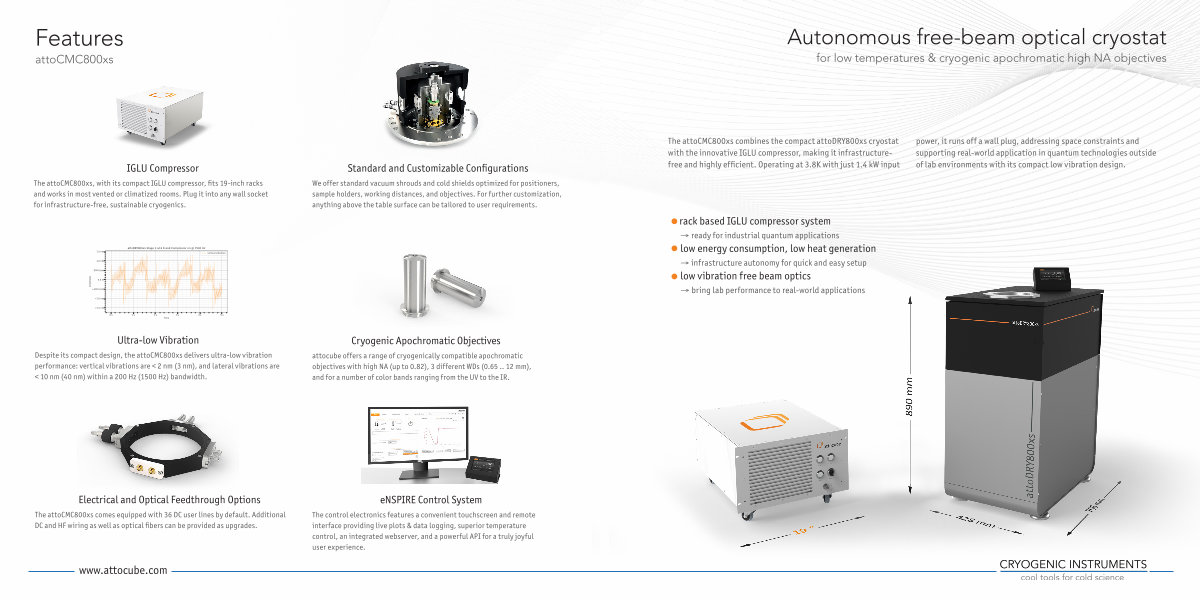

Features attoCMC800xs
IGLU Compressor
The attoCMC800xs , with its compact IGLU compressor , fits 19-inch racks and works in most vented or climatized rooms . Plug it into any wall socket for infrastructure-free , sustainable cryogenics .
Standard and Customizable Configurations
We offer standard vacuum shrouds and cold shields optimized for positioners , sample holders , working distances , and objectives . For further customization , anything above the table surface can be tailored to user requirements .
1.5 nm attoDRY800xs Stage 3 at 6 K and Compressor on @ 1500 Hz vertical vibration
1.0 nm
500.0 pm
Amplitude
0.0 m
500.0 pm
1.0 nm
1.5 nm
0 s 1 s 2 s 3 s 4 s 5 s Time
Ultra-low Vibration
Despite its compact design , the attoCMC800xs delivers ultra-low vibration performance : vertical vibrations are < 2 nm ( 3 nm ), and lateral vibrations are < 10 nm ( 40 nm ) within a 200 Hz ( 1500 Hz ) bandwidth .
Cryogenic Apochromatic Objectives
attocube offers a range of cryogenically compatible apochromatic objectives with high NA ( up to 0.82 ), 3 different WDs ( 0.65 .. 12 mm ), and for a number of color bands ranging from the UV to the IR .
Electrical and Optical Feedthrough Options
The attoCMC800xs comes equipped with 36 DC user lines by default . Additional DC and HF wiring as well as optical fibers can be provided as upgrades . eNSPIRE Control System
The control electronics features a convenient touchscreen and remote interface providing live plots & data logging , superior temperature control , an integrated webserver , and a powerful API for a truly joyful user experience . www . attocube . com
