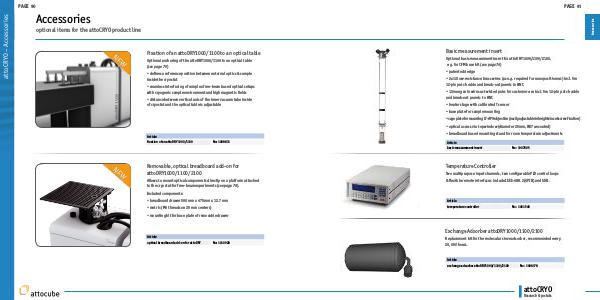

attoCRYO – Accessories
PAGE 90
Accessories
optional items for the attoCRYO product line
Fixation of an attoDRY1000/1100 to an optical table
Optional anchoring of the attoDRY1000/1100 to an optical table
(see page 75)
• defines a reference position between external optics & sample
inside the cryostat
• seamless interfacing of complex free-beam based optical setups
with cryogenic sample environment and high magnetic fields
• distance between vertical axis of the inner vacuum tube inside
of cryostat and the optical table is adjustable
Article
fixation of an attoDRY1000/1100
No: 1008831
Removable, optical breadboard add-on for
attoDRY1000/1100/2100
Allows to mount optical components directly on a platform attached
to the cryostat for free-beam experiments (see page 76).
Included components:
• breadboard drawer 500 mm x 475 mm x 12.7 mm
• metric (M6 threads on 25 mm centers)
• mounting kit for base plate of removable drawer
Article
optical breadboard add-on for attoDRY
No: 1010928
