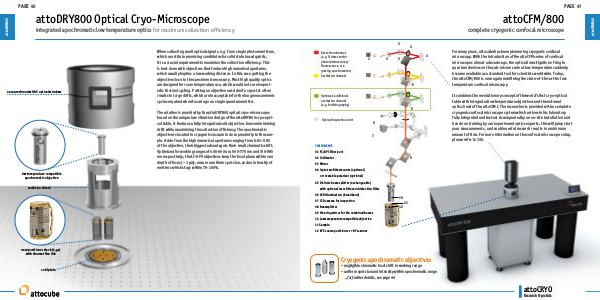

attoCFM/800
complete cryogenic confocal microscope
3
Detection channel
(e.g. Si detector for
photoluminescence/
fluorescence, or a
grating spectrometer)
1
2
4
3
3
Excitation channel
5
Optional: additional
excitation channel
(e.g. for lithography)
5
Optical inspection unit
6
7
8
For many years, attocube has been pioneering cryogenic confocal
microscopy. With the introduction of the attoCFM series of confocal
microscopes almost a decade ago, the optical investigation of single
quantum devices on the sub-micron scale at low temperature suddenly
became available as a standard tool for scientists worldwide. Today,
the attoCFM/800 is once again redefining the state-of-the-art for low
temperature confocal microscopy.
It combines the revolutionary concept of the world’s first cryo-optical
table with integrated low temperature objectives and the external
optics head of the attoCFM I. The researcher is provided with a complete
cryogenic confocal microscope system which arrives in his laboratory
fully integrated and tested. Accompanied by an on-site installation and
hands-on training by our experienced optics experts, this will jump start
your measurements, and enable useful research results in a minimum
amount of time. For more information on the confocal microscope setup,
please refer to 136.
COMPONENTS
01 FC/APC Fiber port
9
02 Collimator
03 Mirror
04 Up to two filter mounts (optional)
or rotatable polarizer (optional)
05 Dichroic beam splitter (exchangeable)
with optional laser filter and detection filter
06 LED illumination (broadband)
07 CCD camera for inspection
08 Beamsplitter
10
12
11
09 Steering mirror for the combined beams
10 Low temperature compatible objective
11 Sample
12 XYZ coarse positioners + XY scanner
Cryogenic apochromatic objectives
• negligible chromatic focal shift in working range
• uniform spot size and intensity within apochromatic range
...for further details, see page 44
