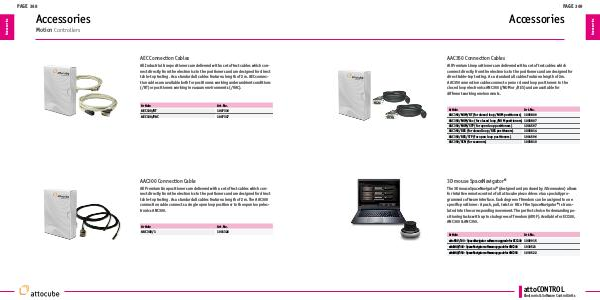

Accessories
AAC350 Connection Cables
All Premium Line positioners are delivered with a set of test cables which
connect directly from the electronics to the positioners and are designed for
direct table-top testing. As a standard all cables feature a length of 2 m.
AAC350 connection cables connect open or closed loop positioners to the
closed loop electronics ANC350 (/NUM or /RES) and are available for
different working environments.
Article
Art. No.
AAC350/NUM/RT (for closed loop /NUM positioners) 1003806
AAC350/NUM/Vac (for closed loop /NUM positioners) 1003807
AAC350/NUM/STP (for open loop positioners)
1004597
AAC350/RES (for closed loop /RES positioners)
1003814
AAC350/RES/STP (for open loop positioners)
1004596
AAC350/SCN (for scanners)
1003810
3D mouse SpaceNavigator®
The 3D mouse SpaceNavigator® (designed and produced by 3Dconnexion) allows
for intuitive remote control of all attocube piezo drives via a specially programmed software interface. Each degree of freedom can be assigned to one
specific positioner: A push, pull, twist or tilt of the SpaceNavigator® is translated into the corresponding movement. The perfect choice for demanding positioning tasks with up to six degrees of freedom (6DOF). Available for ECC100,
ANC300 & ANC350.
Article
Art. No.
attoNAV/100 - SpaceNavigator software upgrade for ECC100 1009915
attoNAV/300 - SpaceNavigator software upgrade for ANC300
1010521
attoNAV/350 - SpaceNavigator software upgrade for ANC350
1010522
attoCONTROL
Electronic & Software Control Units
Accessories
PAGE 369
