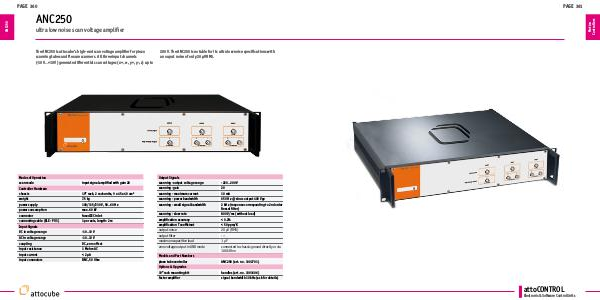

ANC250
ANC250
ultra low noise scan voltage amplifier
The ANC250 is attocube’s high-end scan voltage amplifier for piezo
scanning tubes and flexure scanners. All three input channels
(-10 V…+10 V) generate differential scan voltages (x+, x-, y+, y-, z) up to
Modes of Operation
scan mode
200 V. The ANC250 is notable for its ultra low noise specifications with
an ouput noise of only 20 µV RMS.
Output Signals
input signal amplified with gain 20
Controller Hardware
scanning -output voltage range
-220..200 V
scanning -gain
20
chassis
19” rack, 2 rack units, 9 x 45 x 40 cm³
scanning - maximum current
10 mA
weight
7.5 kg
scanning - power bandwidth
650 Hz @ sinus output 400 Vpp
power supply
100/115/230 V, 50..60 Hz
scanning - small signal bandwidth
power consumption
max. 60 W
2 kHz (response corresponding to 2nd order
Bessel filter)
connector
fused IEC inlet
scanning - slow rate
800 V/ms (without load)
connecting cable (ELE - POS)
1 per axis, length: 2 m
amplification accuracy
< 0.2%
amplification T coefficient
< 50 ppm/K
DC in voltage range
-10..10 V
output noise
20 µV (RMS)
AC in voltage range
-10..10 V
output filter
---
coupling
DC, zero offset
maximum capacitive load
1 µF
input resistance
1 Mohm AC
zero voltage output in GND mode
input current
< 2 µA
connected to chassis ground directly or via
100 kOhm
input connectors
BNC, 50 Ohm
Input Signals
Models and Part Numbers
piezo tube controller
ANC250 (art. no. 1002701)
Options & Upgrades
19” rack mounting kit
handles (art. no. 1001606)
faster amplifier
signal bandwidth 10 kHz (ask for details)
