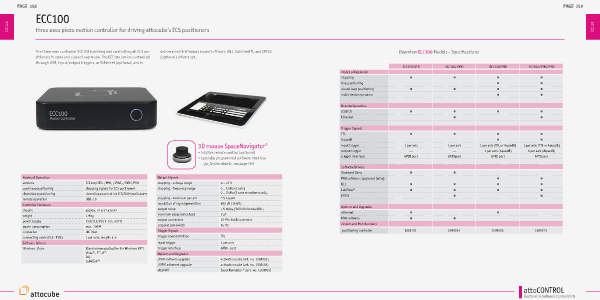

PAGE 358
ECC100
ECC100
three axes piezo motion controller for driving attocube’s ECS positioners
The three axes controller ECC100 is driving and controlling all ECS positioners in open and closed loop mode. The ECC100 can be controlled
through USB, input/output triggers, or Ethernet (optional) and is
delivered with Windows based Software, DLL, LabViewTM, and EPICS
(optional) drivers set.
3D mouse SpaceNavigator®
• intuitve remote control (optional)
• specially programmed software interface
...for further details, see page 369
Modes of Operation
Output Signals
versions
ECC100/STD, /PRO, /SYNC, /SYNC/PRO
stepping - voltage range
0 .. 45 V
open loop positioning
stepping signals for E
