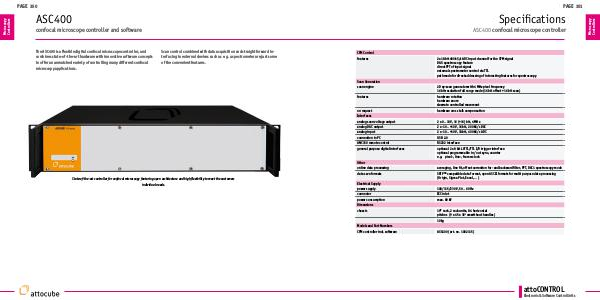

Specifications
ASC400 confocal microscope controller
CFM Control
features
2x 18 bit 400 kS/s ADC input channel for the CFM signal
DAC-spectroscopy feature
direct FFT of input signal
external spectrometer control via TTL
pathmode for direct addressing of interesting features for spectroscopy
Scan Generation
scan engine
2D xy-scan generator with 4 MHz pixel frequency
16 bit resolution full range mode (16 bit offset + 16 bit scan)
features
hardware rotation
hardware zoom
slewrate controlled movement
on request
hardware cross talk compensation
Interfaces
analog scan voltage output
2 x 0 .. 10 V, 16 (+16) bit, 4 MHz
analog DAC output
2 x -10 .. +10 V, 16 bit, 200 kS/s DAC
analog input
2 x -10 .. +10 V, 18 bit, 400 kS/s ADC
connection to PC
USB 2.0
ANC150 remote control
RS232 interface
general purpose digital interfaces
optional 2 x 8 bit LVTTL/TTL I/O trigger interface
optional programmable in / out sync, counter
e.g. pixel-, line-, frame-clock
Other
online data processing
averaging, line fit, offset correction for- and backward filter, FFT, DAC1 spectroscopy mode
data save formats
SPIP ™ compatible data format, open ASCII formats for multi purpose data processing
(Origin, Sigma Plot, Excel, …)
Electrical Supply
power supply
100/115/230 V, 50 .. 60 Hz
connector
IEC inlet
power consumption
max. 80 W
Dimensions
chassis
19“ rack, 2 rack units, 84 horizontal
pitches (9 x 45 x 393 cm without handles)
10 kg
Models and Part Numbers
CFM controller incl. software
ASC400 (art. no. 1002115)
