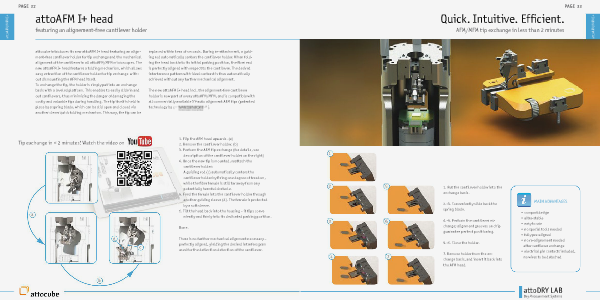

Quick. Intuitive. Efficient.
AFM/MFM tip exchange in less than 2 minutes
1
2
5
1. Put the cantilever holder into the
exchange basis.
2.-3. Conveniently slide back the
spring blade.
3
6
4.-5. Perform the cantilever exchange; alignment grooves on chip
guarantee perfect positioning.
5.-6. Close the holder.
4
7
7. Remove holder from the exchange basis, and insert it back into
the AFM head.
MAIN ADVANTAGES
• compact design
• ultra-stable
• easy to use
• no special tools needed
• fully pre-aligned
• no re-alignement needed
after cantilever exchange
• electrical pin contacts included,
no wires to be detached
attoDRY LAB
Dry Measurement Systems
attoAFM/MFM I+
PAGE 33
