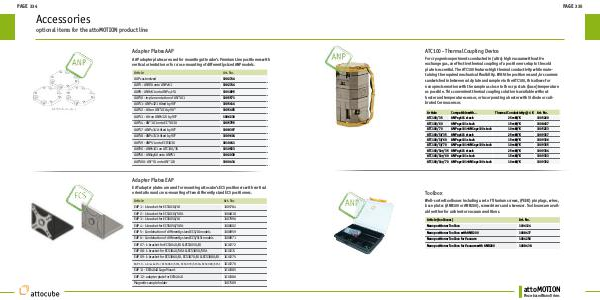

ATC100 - Thermal Coupling Device
For cryogenic experiments conducted in (ultra) high vacuum without He
exchange gas, an effective thermal coupling of a positioner setup to the cold
plate is essential. The ATC100 features high thermal conductivity while maintaining the required mechanical flexibility. With the positioners and/or scanners
sandwiched in between cold plate and sample via the ATC100, this allows for
nanoprecise motion with the sample as close to the cryostats (base) temperature
as possible. This convenient thermal coupling solution is available without
heater and temperature sensor, or incorporating a heater with Si diode or calibrated Cernox sensor.
Article
Compatible with...
ATC100/35
ANPxy101 stack
Thermal Conductivity @ 4 K Art. No.
25 mW/K
1005260
ATC100/60
ANPxyz101 stack
15 mW/K
1008437
ATC100/70
ANPxyz101+ANSxyz100 stack
10 mW/K
1005253
ATC100/Si/35
ANPxy101 stack
25 mW/K
1009327
ATC100/Si/60
ANPxyz101 stack
15 mW/K
1009326
ATC100/Si/70
ANPxyz101+ANSxyz100 stack
10 mW/K
1009325
ATC100/Cer/35 ANPxy101 stack
25 mW/K
1009334
ATC100/Cer/60 ANPxyz101 stack
15 mW/K
1009333
ATC100/Cer/70 ANPxyz101+ANSxyz100 stack
10 mW/K
1009332
Toolbox
Well-sorted toolboxes including a set of Titanium screws, (PEEK) pin plugs, wires,
base plates (ANB100 or ANB200), screwdrivers and a tweezer. Toolboxes are available either for ambient or vacuum conditions.
Article (toolboxes)
Art. No.
Nanopositioner Toolbox
1004124
Nanopositioner Toolbox with ANB200
1008437
Nanopositioner Toolbox for Vacuum
1004256
Nanopositioner Toolbox for Vacuum with ANB200
1008438
