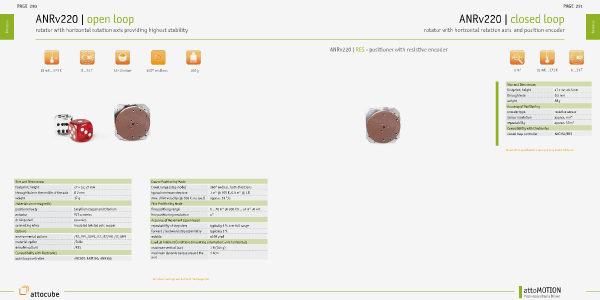

PAGE 291
Rotators
ANRv220 | closed loop
rotator with horizontal rotation axis and position encoder
ANRv220 | RES - positioner with resistive encoder
6 m°
10 mK .. 373 K
0 .. 31 T
Size and Dimensions
footprint; height
27 x 12; 28.5 mm
through hole
Ø 2 mm
weight
38 g
Accuracy of Positioning
encoder type
resistive sensor
sensor resolution
approx. 6 m°
repeatability
approx. 50 m°
Compatibility with Electronics
closed loop controller
ANC350/RES
for all other specifications see open loop model ANRv220
attoMOTION
Piezo-based Nano Drives
