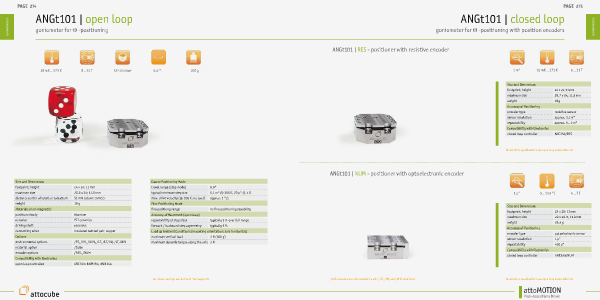

PAGE 275
Goniometers
ANGt101 | closed loop
goniometer for Θ -positioning with position encoders
ANGt101 | RES - positioner with resistive encoder
1 m°
10 mK .. 373 K
0 .. 31 T
Size and Dimensions
footprint; height
24 x 24;11 mm
maximum size
28.7 x 24; 11.8 mm
weight
18 g
Accuracy of Positioning
encoder type
resistive sensor
sensor resolution
approx. 0.1 m°
repeatability
approx. 1 .. 2 m°
Compatibility with Electronics
closed loop controller
ANC350/RES
for all other specifications see open loop model ANGt101
ANGt101 | NUM - positioner with optoelectronic encoder
°C
1 µ°
0 .. 100 °C
0 .. 7 T
Size and Dimensions
footprint; height
24 x 28; 11 mm
maximum size
28 x 28.9; 11.8 mm
weight
25.5 g
Accuracy of Positioning
encoder type
optoelectronic sensor
sensor resolution
1 µ°
repeatability
400 µ°
Compatibility with Electronics
closed loop controller
/NUM encoders are only compatible with /RT, /HV, and /UHV conditions
ANC350/NUM
for all other specifications see open loop model ANGt101
