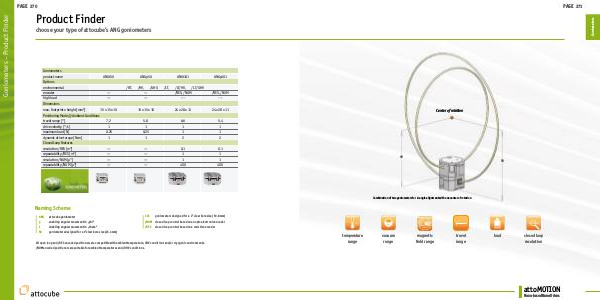

Product Finder
choose your type of attocube’s ANG goniometers
Goniometers
product name
ANGt50
ANGp50
ANGt101
ANGp101
Options
environmental
/RT,
/HV,
/UHV,
/LT,
/LT/HV,
/LT/UHV
encoder
---
---
/RES, /NUM
/RES, /NUM
high load
---
---
---
---
15 x 15 x 10
15 x 15 x 10
24 x 28 x 11
24 x 28 x 11
Dimensions
max. footprint x height [mm³]
Positioning Mode @ Ambient Conditions
travel range [°]
7.2
5.8
6.6
5.4
drive velocity [°/s]
1
1
1
1
maximum load [N]
0.25
0.25
1
1
1
1
2
2
resolution /RES [m°]
---
---
0.1
0.1
repeatability /RES [m°]
---
---
1
1
resolution /NUM [µ°]
---
---
1
1
repeatability /NUM [µ°]
---
---
400
400
dynamic drive torque [Ncm]
Closed Loop Features
Naming Scheme
ANG
attocube goniometer
101
p
enabling angular movement in „phi“
/NUM closed loop control based on an optoelectronic encoder
goniometers designed for a 2” clear bore size (50.8 mm)
t
enabling angular movement in „theta“
/RES
50
goniometers designed for a 1”clear bore size (25.4 mm)
closed loop control based on a resistive encoder
All open loop and /RES encoded positioners are compatible with ambient temperature, UHV conditions and/or cryogenic environments.
/NUM encoded positioners are suitable for ambient temperatures and /UHV conditions.
