IDS Sensors

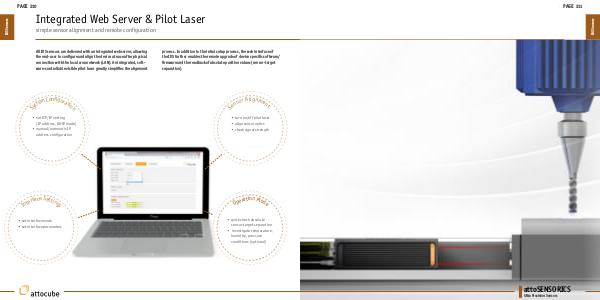

Integrated Web Server & Pilot Laser
simple sensor alignment and remote configuration
ys
tem
Confi gura
t io
n
S
All IDS sensors are delivered with an integrated webserver, allowing
the end-user to configure and align the device at ease after physical
connection with the local area network (LAN). An integrated, software-controllable visible pilot laser greatly simplifies the alignment
• set TCP/IP setting
(IP address, DHCP mode)
• manual/automatic IP
address configuration
te
In
r f ace Set t ing
s
• set interface mode
• set interface parameters
process. In addition to the intial setup process, the web interface of
the IDS further enables the remote upgrade of device specific software/
firmware and the readback of absolute position values (sensor-target
separation).
r Alignmen
nso
t
e
S
• turn on/off pilot laser
• align sensor optics
• check signal strength
er a
Op
t ion Mod
e
• quick check absolute
sensor-target separation
• investigate temperature,
humidity, pressure
conditions (optional)
