attoAFM/MFM Ixs
PAGE 162

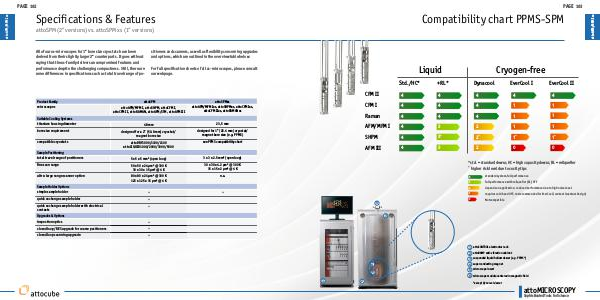

Specifications & Features
attoSPM (2” versions) vs. attoSPM xs (1” versions)
All of our xs-microscopes for 1“ bore size cryostats have been
derived from their slightly larger 2“ counterparts. It goes without
saying that the xs-family delivers uncompromised features and
performance despite the challenging compactness. Still, there are
some differences in specifications such as total travel range of po-
Product Family
microscopes
sitioners and scanners, as well as flexibility concerning upgrades
and options, which are outlined in the overview table below.
For full specification sheets of all xs-microscopes, please consult
our webpage.
attoSPM
attoSPMxs
attoAFM/MFM I, attoSHPM, attoCFM I,
attoCFM II, attoRAMAN, attoAFM/STM, attoAFM III
attoAFM/MFM Ixs, attoSHPMxs, attoCFM Ixs,
attoCFM IIxs, attoRAMANxs
Suitable Cooling Systems
titanium housing diameter
48 mm
23,5 mm
bore size requirement
designed for a 2” (50.8 mm) cryostat/
magnet bore size
designed for 1” (25.4 mm) cryostat/
magnet bore size (e.g. PPMS)
compatible cryostats
attoDRY1000/1100/2100
attoLIQUID1000/2000/3000/5000
see PPMS compatibility chart
total travel range of positioners
5 x 5 x 5 mm³ (open loop)
3 x 3 x 2.5 mm³ (open loop)
fine scan range
50 x 50 x 24 µm³ @ 300 K
30 x 30 x 15 µm³ @ 4 K
30 x 30 x 4.2 µm³ @ 300 K
15 x 15 x 2 µm³ @ 4 K
ultra-large range scanner option
80 x 80 x 24 μm³ @ 300 K
125 x 125 x 15 μm³ @ 4 K
n.a.
simple sample holder
•
•
quick exchange sample holder
•
quick exchange sample holder with electrical
contacts
•
Sample Positioning
Sample Holder Options
Upgrades & Options
inspection optics
•
closed loop /RES upgrade for coarse positioners
•
closed loop scanning upgrade
•
