Cryogenic
Photonic Probe
Station
PAGE 152

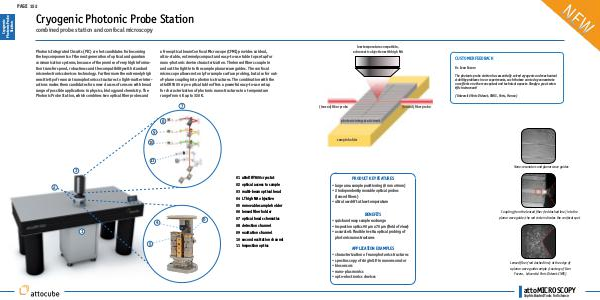

Cryogenic Photonic Probe Station
combined probe station and confocal microscopy
Photonic Integrated Circuits (PIC) are hot candidates for becoming
the key components of the next generation of optical and quantum
communication systems, because of the promise of very high information transfer speed, robustness and the compatibility with standard
microelectronics devices technology. Furthermore the extremely high
sensitivity of resonant nanophotonics structures to light-matter interactions makes them candidates for a new classes of sensors with broad
range of possible applications in physics, biology and chemistry. The
Photonic Probe Station, which combines two optical fiber probes and
a free optical beam Confocal Microscope (CFMI) provides an ideal,
ultra-stable, extremely compact and easy-to-use table top setup for
nano-photonic device characterization. The lensed fibers couple in
and out the light into the sample planar wave guides. The confocal
microscope allows not only for sample surface probing, but also for outof-plane coupling into photonic structures. The combination with the
attoDRY800 cryo-optical table offers a powerful easy-to-use setup
for characterization of photonic nanostructures in a temperature
range from 4 K up to 320 K.
7
8
9
10
11
3
01 attoDRY800 cryostat
02 optical access to sample
2
03 multi-beam optical head
04 LT high NA objective
05 removable sample holder
06 lensed fiber holder
4
1
6
07 optical head schematics
08 detection channel
09 excitation channel
5
10 second excitation channel
11 inspection optics
