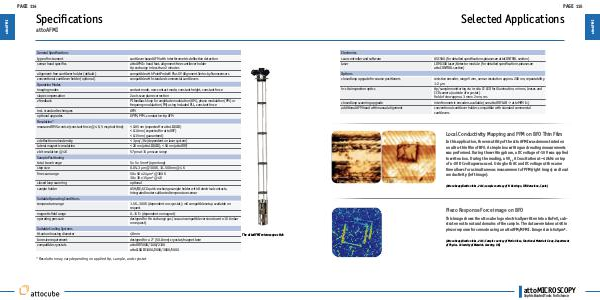

Selected Applications
Electronics
scan controller and software
ASC500 (for detailed specifications please see attoCONTROL section)
laser
LDM1300 laser/detector module (for detailed specifications please see
attoCONTROL section)
Options
closed loop upgrade for coarse positioners
resistive encoder, range 5 mm, sensor resolution approx. 200 nm, repeatability
1-2 μm
in-situ inspection optics
tip/sample monitoring via in-situ LT-LED for illumination, mirrors, lenses and
CCD camera (outside of cryostat)
field of view approx. 3 mm x 2 mm, res
closed loop scanning upgrade
interferometric encoders available (see attoDRY LAB -> attoMFM I+)
additional AFM head with manual alignment
conventional cantilever holder, compatible with standard commercial
cantilevers
Local Conductivity Mapping and PFM on BFO Thin Film
2 µm
In this application, the versatility of the attoAFM I was demonstrated on
an ultra-thin film of BFO. A simple box writing and reading measurements
was performed. During the writing phase, a DC voltage of -10 V was applied
to write a box. During the reading, a 5 Vpp AC excitation at ~42 kHz on top
of a -2 V DC voltage was used. Using both AC and DC voltage at the same
time allows for a simultaneous measurement of PFM (right image) and local
conductivity (left image).
(attocube application labs, 2014; sample courtesy of N. Domingo, ICN Barcelona, Spain)
Piezo Response Force image on BFO
This image shows the attocube logo electrically written into a BaFeO3 substrate next to natural domains of the sample. The data were taken at 4K in
piezo response force mode using an attoAFM/MFM I. Image size is 5x5µm².
(attocube application labs, 2014; Sample courtesy of Marin Alexe, Functional Materials Group, Department
of Physics, University of Warwick, Coventry, UK)
